Radial piston motors are LSHT categorised. These motors are designed with pistons arranged perpendicular to the output shaft. Sometimes, the pistons will journey against a cam, which is mechanically connected to the output shaft. The pistons will pressure the cam to rotate as hydraulic fluid enters the motor. These motors are able to producing high torques at low speeds, down to half a revolution per minute. Purposes embody caterpillar drives of dragline excavators, cranes, winches and ground drilling equipment. There are two components that make up a hydraulic gear motor. These components are the idler gear and the driven gear. The output shaft is hooked up to the driven gear using a key. You port high-pressure oil into one of the gear’s sides, and then it flows between the wall housing and the gear suggestions into the outlet port. After that, the gears mesh, which prevents the oil in the outlet side from returning to the inlet side. Low initial price and larger tolerance to contamination are just a few advantages of gear motors. Our orbital motor portfolio, the trade's largest, affords a wide number of sizes, varieties, and variants. ], durable Danfoss Char-Lynn® motors present excessive power density in demanding environments. 1 compliant EMD pace sensor offers excessive-resolution digital output at both excessive and low speeds. Its contactless operation and robust design make it appropriate for challenging functions together with outside and heavy-industrial machines.

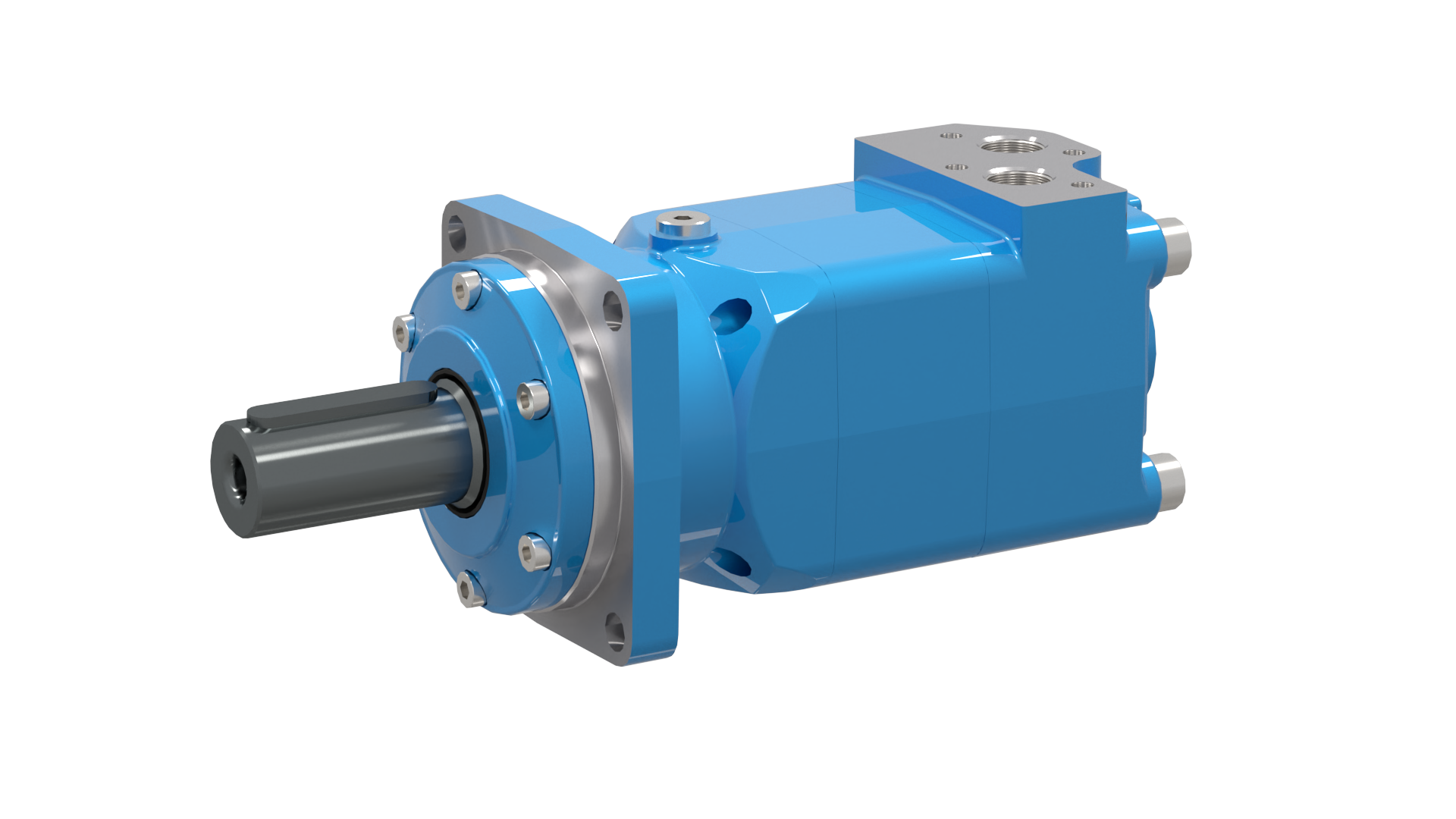

Hydraulic orbital motor is a motor that slow-rotating rotor drives the output by way of the flat key or splined shaft. The inside gear ring is fixedly connected with the housing, and the oil entering from the oil port pushes the rotor to revolve round a middle level. ATO provides 50 to 395 cc/rev displacement hydraulic orbital motors for you to choose from, the utmost velocity from 180 rpm to 859 rpm, working torque as much as 525 Nm, working strain 15MPa, excessive efficiency and economical value. Hydraulic orbit motors have a variety of purposes, mainly used within the slewing mechanism of quite a lot of equipment equivalent to agriculture, fishery, light trade, lifting and transportation, mining, and development machinery.

So do invest some time into studying the fundamentals of 2D CAD. With the ability to create dimensionally correct drawings could be very, very helpful. And one of the best half is that basic 2D CAD software program is free lately! For example the nanoCAD 5. It's primary, however it's a superb place to begin - the interface is standard and you may earn it in no time! I used to advocate Drafsight left and right when there was a free model of it. The oil intake duct in the casing is separated by the entire section between the 2 half-grooves of the distributor. After a 180 rotation, the piston-pushed by the cam strikes radially upwards. This is the fluid return section. The same duct in the casing can now be used to expel the oil. After a 360 rotation, the piston is at Prime Useless Center, separated for a short moment by all the section of the distributor grooves.

They are finest identified for prime efficiency, excessive pressures, high speeds and volumetric mechanical efficiencies within the 97 to 98% range. The also supply quick reaction and precise control. These motors are suitable for applications that require a big quantity of power. They are used to drive mobile and construction tools, winches, ship-cranes and all sorts of heavy-obligation hydraulic gear for offshore and onshore operations. The inner slides mate with the star wheel and normally have three or 4 slides. The slider strikes in cooperation with the interior by the shaft, causing the inner and outer cylinders to rotate relative to one another. The crankshaft is linked to the inner slider, so when the inner slider strikes, the crankshaft additionally rotates. 1. Liquid flows into the orbital hydraulic motor through the inlet to generate hydraulic strain. 2. The liquid strain pushes the interior slider to make a circular movement across the star wheel. 1. How a lot torque will the motor need to generate and will this be steady or intermittent in nature? 2. If applying the motor in an current system, what is the operating strain? 3. If applying the motor in a brand new design, what will be the design strain of the system?
